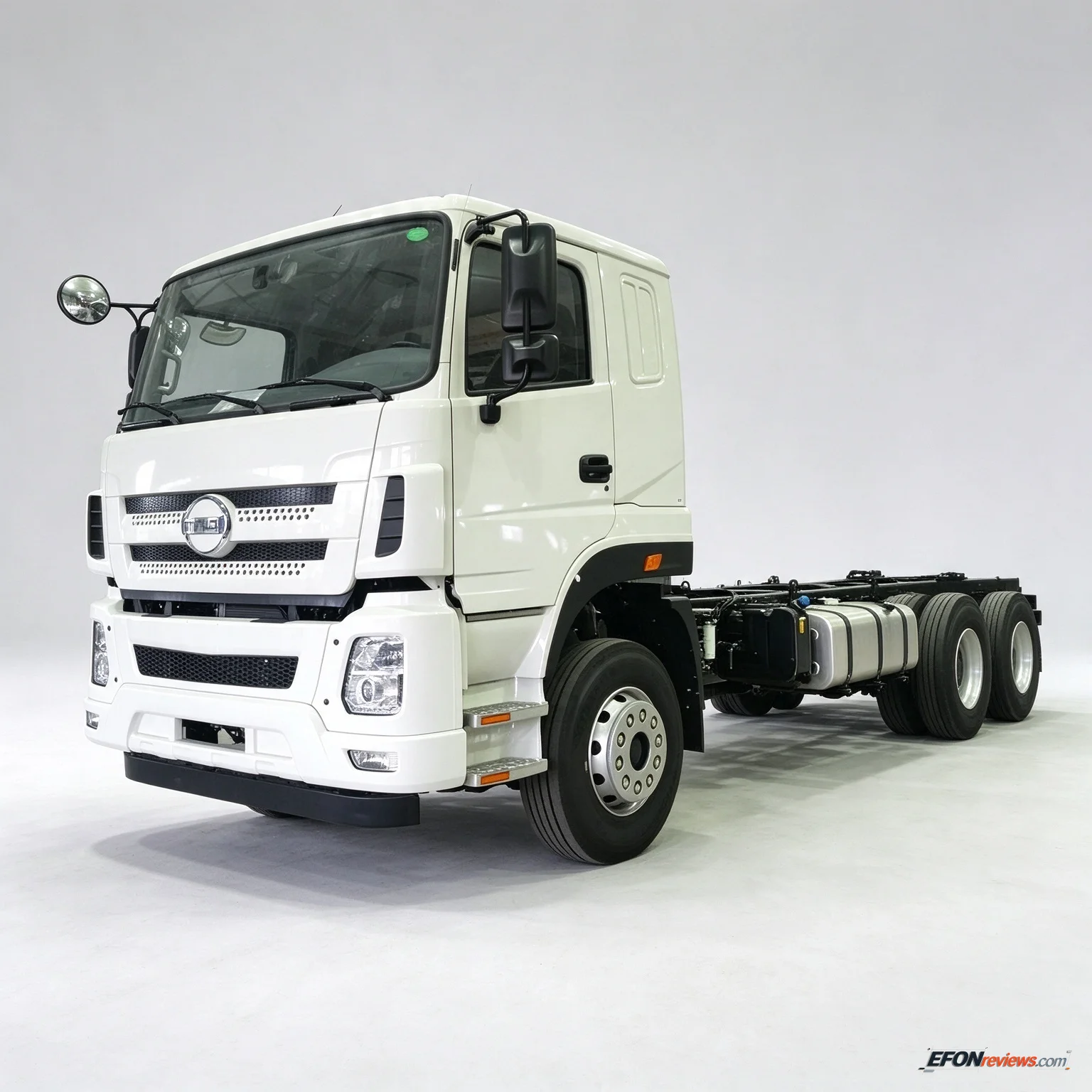

{{ tags.important.name }}Tri-Ring T380A 6×4 Heavy-Duty Dump Truck (270HP)

Product Introduction

The Tri-Ring T380A 6×4 Dump Truck is a true heavy-duty commercial vehicle engineered to excel in the most demanding construction, mining, and bulk material transport operations. Featuring a robust three-axle configuration and a high-capacity chassis, this truck is purpose-built to deliver reliable performance, exceptional durability, and maximum profitability in severe work environments.

Powertrain and Performance

At the heart of this heavy-duty truck is the renowned Weichai WP7.270E31 diesel engine, delivering a powerful 270HP. The engine is seamlessly mated to a heavy-duty FAST 10JSD140TB High-Speed 10-speed manual transmission, which is specifically optimized for better highway fuel economy while retaining strong pulling power. Compliant with Euro 3 emission standards, this robust mechanical setup is designed for export markets where fuel quality varies and ease of maintenance is critical.

Chassis Architecture and Payload

Built for extreme durability, the truck utilizes a massive 290 mm double-layer frame. It features a 4,750 + 1,350 mm wheelbase (measuring from the front axle to the first rear axle, and the spacing between the two rear axles), supported by a 7-ton front axle and robust dual 13-ton rear axles with wide brakes. It rides on heavy-duty 11R22.5-18 tires and carries a massive 420 L aluminum alloy fuel tank for extended operating range. With a 10,000 kg curb weight and a 25,000 kg Gross Vehicle Weight (GVW), it delivers a legal payload capacity of 15 tons, making it an ideal workhorse for heavy construction and mining transport.

Cabin and Driver Comfort

The vehicle is equipped with a T380A Flat-Roof Luxury Edition cab featuring a sleeper berth, providing essential comfort for drivers during long shifts or remote site operations. The cab comes standard with air conditioning and ABS (Anti-lock Braking System), ensuring a safe and fatigue-free working environment.

Global Export and EFON GROUP Partnership

As the authorized global export agent, EFON GROUP is dedicated to delivering premium commercial vehicles to international markets across Africa, Southeast Asia, Latin America, and the Middle East. We provide comprehensive end-to-end export solutions, including customized bodywork coordination, rigorous pre-shipment quality inspections, and reliable sea freight logistics. By choosing EFON GROUP, international buyers secure a trusted partner committed to competitive pricing, seamless global shipping, and dedicated after-sales support for their entire fleet.

• Chassis Class: This is a true heavy-duty 6×4 dump truck (three axles total: one steering, two driving). The 25,000 kg GVW places it firmly in the heavy-duty segment.
• Payload Capacity: With a GVW of 25,000 kg and a curb weight of 10,000 kg, the legal payload capacity is 15 tons.
• Powertrain: Powered by the renowned Weichai WP7.270 (270HP) engine, paired with a heavy-duty FAST 10-speed transmission (High Speed version for better highway fuel economy).
• Drivetrain: Features a 7-ton front axle and robust dual 13-ton rear axles (with wide brakes). The wheelbase is specified as 4750 + 1350 mm, indicating the distance from the front axle to the first rear axle, and the spacing between the two rear axles.
• Export Market: The Euro 3 emission standard makes it a prime candidate for export to developing markets (Africa, Southeast Asia, Latin America) where heavy-duty construction and mining transport are required, and emission regulations are more relaxed.
