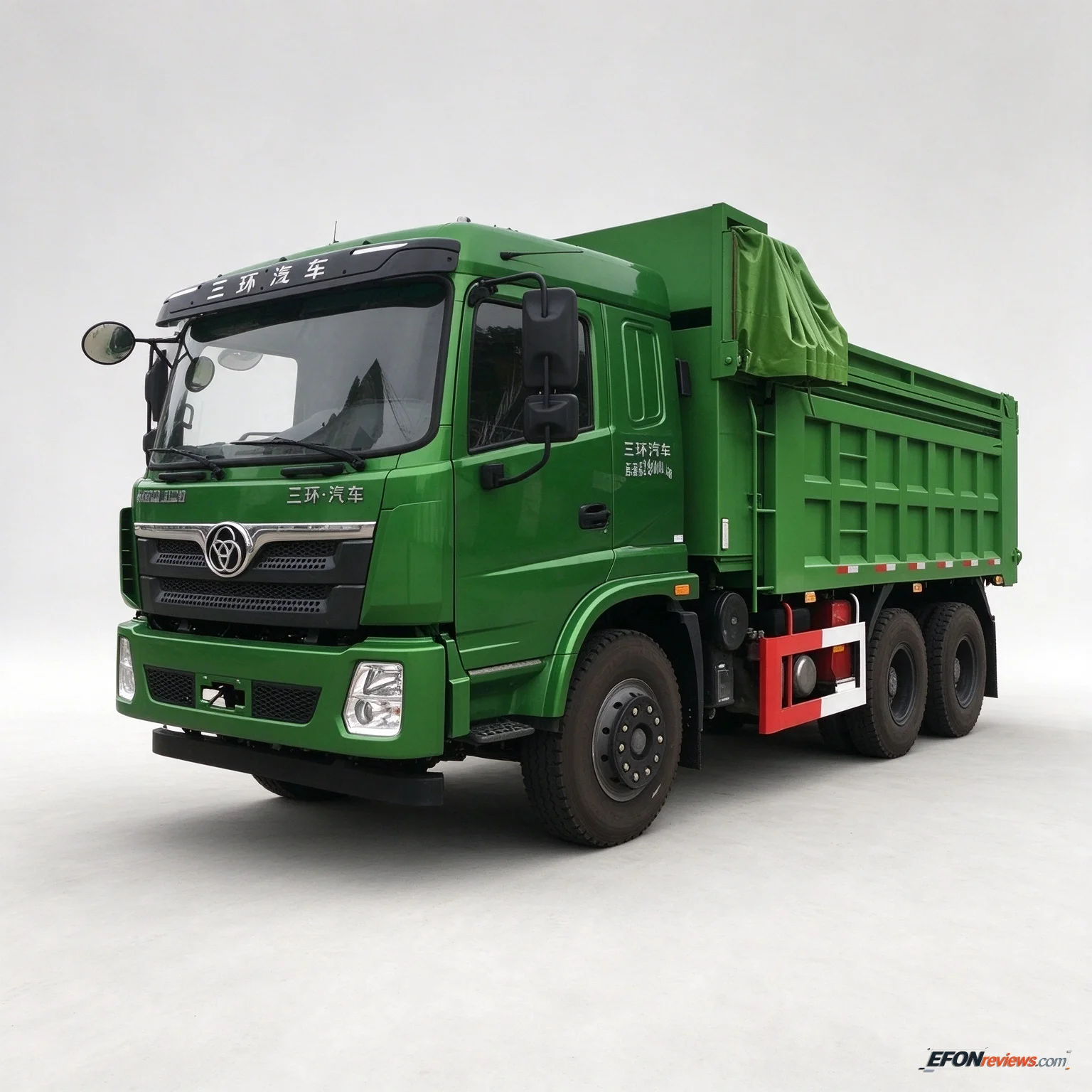

{{ tags.important.name }}Tri-Ring T5 Semi-High Roof 6×4 Heavy-Duty Dump Truck (380HP)

Product Introduction

The Tri-Ring T5 Semi-High Roof 6×4 Dump Truck is a robust and highly capable commercial vehicle engineered to excel in severe off-road and heavy-load operations. Built for large-scale construction, mining, and bulk material transport, this chassis combines a high-torque powertrain with a massively reinforced structural framework and a high-volume dump box, ensuring maximum durability and operational efficiency in the toughest environments.

Powertrain and Performance

Powering this heavy-duty workhorse is the reliable Weichai WP10.380E22 diesel engine, delivering a massive 380HP. The engine is seamlessly paired with a heavy-duty FAST 12JSDX220TA-B 12-speed manual transmission. The "220" in the transmission model indicates a massive 2200 N·m torque capacity, perfectly matched to handle the extreme loads and severe off-road conditions this truck is built for. Compliant with Euro 2 emission standards, this rugged mechanical setup is specifically tailored for developing export markets (such as Africa and Southeast Asia) where extreme durability and ease of maintenance are prioritized over modern emission regulations.

Chassis Architecture and Payload

Built to withstand brutal abuse, the truck utilizes a heavy-duty 300 (8+8) double-layer frame, indicating a 300mm main beam with an 8mm main web and an 8mm reinforcement layer. It rides on a 4,250 + 1,350 mm wheelbase, supported by a heavy-duty 9-ton single front axle and colossal dual 16-ton rear axles. This drivetrain is designed for maximum durability, riding on rugged 12.00R20-18 Engineering pattern tires that resist cuts and punctures in harsh environments. With a 12,100 kg curb weight and a 25,000 kg Gross Vehicle Weight (GVW), it delivers a legal payload capacity of 12.9 tons (though in export markets, this chassis is frequently operated at much higher gross weights for heavy off-road hauling). A 380 L aluminum alloy fuel tank ensures extended operating range.

High-Volume Cargo Box

Unlike standard chassis-only specifications, this vehicle includes a specified dump box measuring 6,200 × 2,400 × 2,000 mm (L×W×H). The 2-meter height is exceptionally deep, providing a high volumetric capacity that is ideal for hauling bulk materials such as sand, gravel, coal, or construction debris, maximizing efficiency per trip.

Cabin and Driver Comfort

The vehicle is equipped with a T5 Semi-High Roof Luxury Edition cab featuring a sleeper berth, providing essential comfort and rest facilities for drivers during long shifts or remote site assignments. The cab comes standard with air conditioning and ABS (Anti-lock Braking System), ensuring a safe and comfortable working environment despite the extreme external conditions.

Global Export and EFON GROUP Partnership

As the authorized global export agent, EFON GROUP is dedicated to delivering premium commercial vehicles to international markets across Africa, Southeast Asia, Latin America, and the Middle East. We provide comprehensive end-to-end export solutions, including customized bodywork coordination, rigorous pre-shipment quality inspections, and reliable sea freight logistics. By choosing EFON GROUP, international buyers secure a trusted partner committed to competitive pricing, seamless global shipping, and dedicated after-sales support for their entire fleet.

• Heavy-Duty Configuration: This is a robust 6×4 dump truck equipped with a heavy-duty drivetrain. The 300 (8+8) frame indicates a 300mm main beam with an 8mm main web + 8mm reinforcement (double-layer frame), built for severe off-road and heavy-load conditions.
• Powertrain: Powered by the reliable Weichai WP10.380 (380HP) engine, paired with a massive FAST 12JSDX220TA-B 12-speed transmission (the "220" indicates a 2200 N·m torque capacity). Combined with dual 16-ton rear axles and 12.00R20 engineering tires, it is designed for maximum durability.
• Cargo Box: Unlike standard chassis-only specs, this includes a specified dump box dimension of 6200 × 2400 × 2000 mm. A 2-meter height is exceptionally deep, ideal for hauling bulk materials like sand, gravel, or coal.
• Payload Capacity: With a GVW of 25,000 kg and a curb weight of 12,100 kg, the legal payload capacity is 12.9 tons. (Note: In export markets, this chassis is often used at higher gross weights for heavy off-road operations).
• Export Market: The Euro 2 emission standard and rugged engineering build make this truck specifically tailored for developing markets (e.g., Africa, Southeast Asia) where extreme durability is prioritized over modern emission regulations.
