{{ tags.important.name }}Tri-Ring T3 4×2 Compressed Garbage Truck (180HP)

Product Introduction

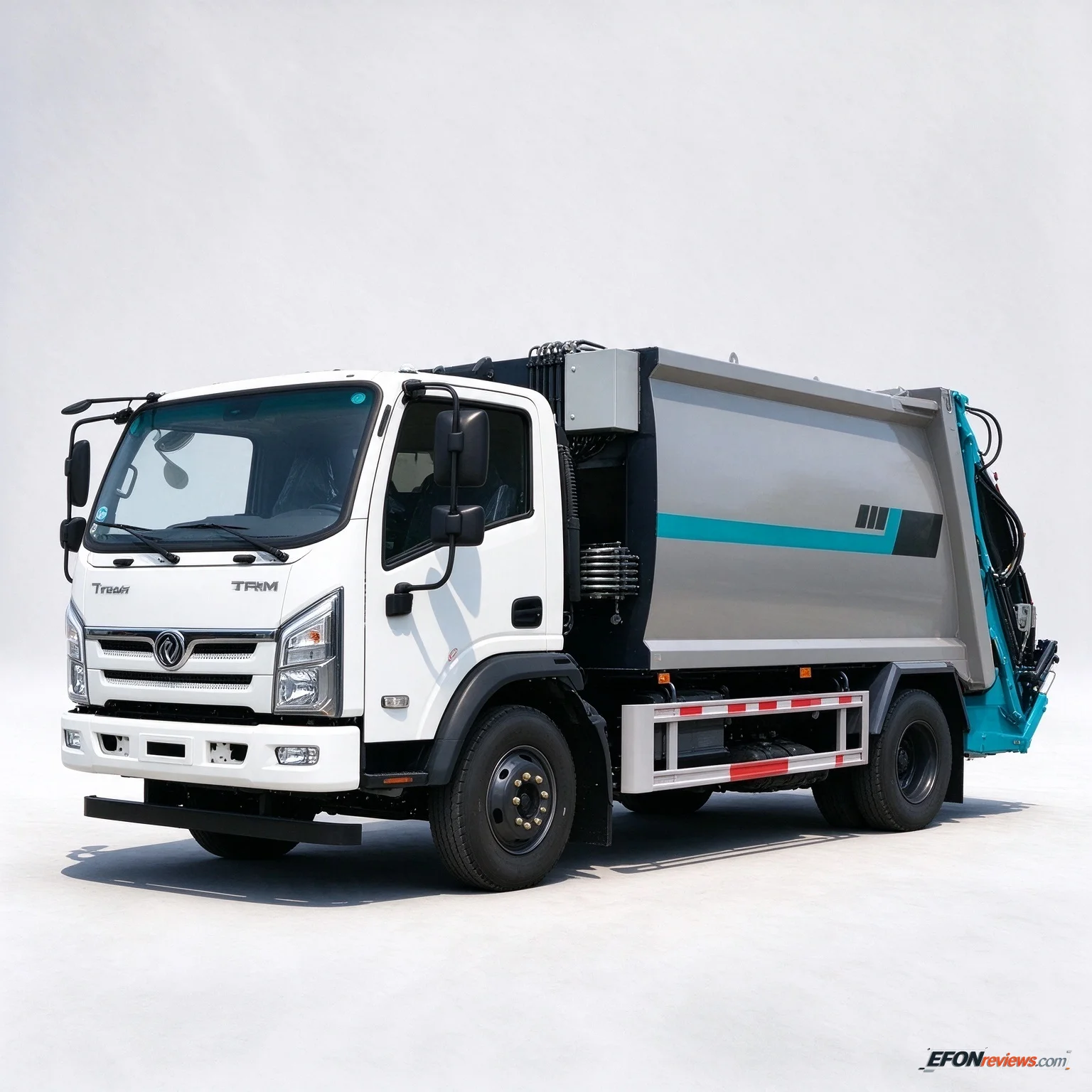

The Tri-Ring T3 4×2 Compressed Garbage Truck is a highly efficient, medium-duty municipal sanitation vehicle engineered for the collection, compaction, and transport of household and commercial waste. Unlike standard drop-in box trucks, this vehicle features a fully integrated hydraulic compactor in the rear, allowing it to crush and compress waste to maximize payload volume per trip. Built for reliability, hygiene, and operational efficiency, it is an ideal solution for modern urban waste management fleets.

Powertrain and Performance

At the heart of this vehicle is the Yuchai YCDV3663-180 diesel engine, delivering a powerful 180HP with low fuel consumption. The engine is seamlessly mated to a heavy-duty FAST 8JS85TM High-Speed 8-speed gearbox. A key engineering feature is the Power Take-Off (PTO) driven by this gearbox, which powers the hydraulic pumps for the compaction and lifting mechanisms, ensuring smooth and reliable operation during stop-and-go municipal collection routes.

Chassis Architecture and Payload

Built to handle the immense weight of compacted waste, the truck utilizes a heavier-duty 230 (6+5) double-layer frame. It is supported by a 2.5-ton single front axle and a robust 7.2-ton rear axle (4.875 ratio), riding on durable 8.25R20-16 tires. This medium-duty chassis configuration ensures exceptional structural strength and load stability. A 160 L iron oil tank provides a dependable fuel supply for extended daily shifts.

Advanced Compaction Technology

The standout feature of this truck is its fully enclosed upper structure, which uses integrated electro-hydraulic technology. This system ensures the smooth, reliable, and highly efficient operation of the loading, compressing, and unloading cycles. The attractive and sturdy box design offers strong pressure resistance, allowing for a significantly larger loading capacity and reducing the frequency of trips to the disposal site.

Cabin and Driver Comfort

The vehicle features a T3 (1,995 mm width) Single Row Flat Roof Standard Version cab. Designed for driver productivity, it comes equipped with modern amenities including electric doors and windows, central locking, a multifunction steering wheel, LED daytime running lights, air conditioning, and an optional multimedia system with a rearview camera, ensuring a safe and comfortable working environment.

Global Export and EFON GROUP Partnership

As the authorized global export agent, EFON GROUP is dedicated to delivering premium commercial vehicles to international markets across Africa, Southeast Asia, Latin America, and the Middle East. We provide comprehensive end-to-end export solutions, including customized bodywork coordination, rigorous pre-shipment quality inspections, and reliable sea freight logistics. By choosing EFON GROUP, international buyers secure a trusted partner committed to competitive pricing, seamless global shipping, and dedicated after-sales support for their entire fleet.

• Vehicle Type: This is a Compressed Garbage Truck (压缩式垃圾车). Unlike the detachable (hook-lift) type, this truck uses an integrated hydraulic compactor in the rear to crush and compact waste, allowing it to carry significantly more volume in a single trip. This is why the "Cargo box" dimension is marked as "/" (it is a specialized integrated body, not a standard drop-in box).
• Chassis & Payload: Built on a heavier-duty 230 (6+5) double-layer frame with a 7.2-ton rear axle (4.875 ratio) and larger 8.25R20 tires. This is a medium-duty chassis (unlike the light-duty hook-lift model), required to handle the massive weight of compacted garbage.
• Powertrain: Powered by the Yuchai YCDV3663-180 (180HP) engine, mated to a Fast 8JS85TM 8-speed gearbox. The power take-off (PTO) from this gearbox will drive the hydraulic pumps for the compaction mechanism.
• Key Selling Point: The "Integrated Electro-Hydraulic Technology" ensures smooth and reliable operation of the loading, compressing, and unloading cycles, maximizing sanitation efficiency.

Product Features

• Yuchai engine with strong power and low fuel consumption.
• Double-layer frame with strong load capacity.
• Fully enclosed upper structure, using integrated electro-hydraulic technology; attractive box design, strong pressure resistance, sturdy structure, and large loading capacity.

Application Scenarios

• Compressing and transporting household garbage, etc.
