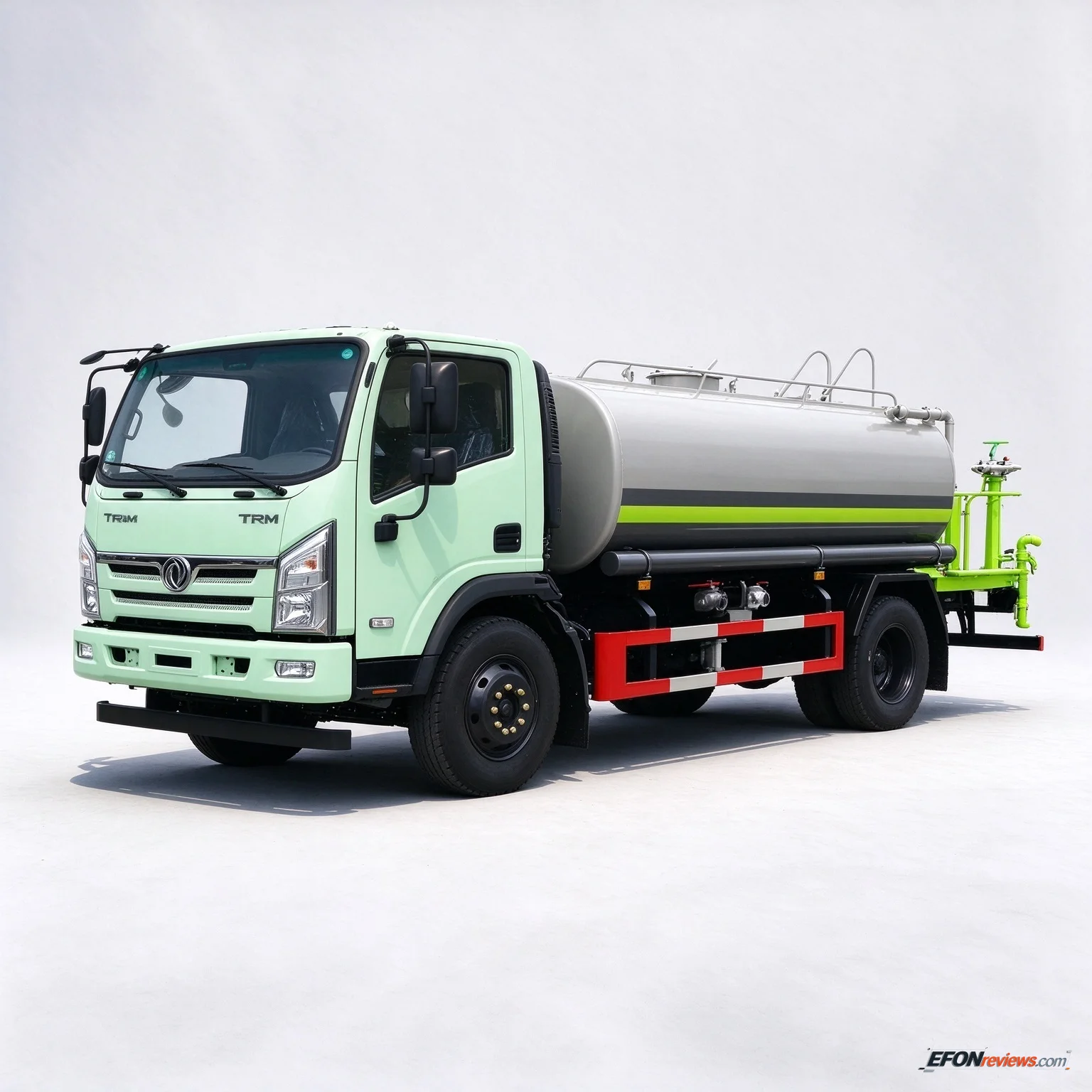

{{ tags.important.name }}Tri-Ring T3 4×2 Greening Spraying Truck（180hp）

The Tri-Ring T3 4×2 Greening Spraying Truck (绿化喷洒车), also known as a water bowser or street sprinkler, is a medium-duty municipal service vehicle built on the Tri-Ring T3 platform. Rather than a conventional cargo box, it carries an 8 m³ water tank and a dedicated spraying system comprising front, side and rear nozzles plus a water cannon, making it purpose-built for landscaping, dust suppression and municipal water supply duties.

Chassis and Load-Carrying Structure

The vehicle is built on a 230 (6+5) double-layer frame — a 230 mm deep, 6+5 mm thick reinforced ladder frame — paired with a 6-ton rear axle running a 5.286 final drive ratio and a 2.5-ton single front axle. This medium-duty chassis configuration is specified specifically to carry the considerable and shifting mass of a full 8 m³ water load, roughly eight tonnes of water alone, while preserving stability during transit and spraying. Suspension is by 8/10+7 leaf springs, and the truck rides on 8.25R20-16 tyres. A 160 L iron fuel tank provides working range appropriate to municipal duty cycles.

Powertrain

Power comes from the Yuchai YCDV3663-180 diesel engine rated at 180 hp, matched to a Fast 8JS85M high-speed eight-speed gearbox. The engine drives both the vehicle and the water pump through a power take-off (PTO), so spraying can be carried out while the truck is in motion or stationary. The combination of the YCDV3663-180 engine, the 8JS85M transmission and the 5.286 rear axle ratio is deliberately matched to the chassis and tank: the drivetrain delivers adequate torque for a fully laden 8 m³ tank without overloading the chassis, while keeping engine operating points economical for the stop-start duty cycle typical of street sprinkling and green-belt irrigation.

Cabin and Equipment

The truck uses the T3 cabin in single-row, flat-roof standard form with a 1995 mm width. Standard equipment includes electric windows, central locking, a multifunction steering wheel, LED daytime running lights and air conditioning, with multimedia and a rearview camera available as options — a specification level consistent with modern municipal fleet expectations for driver comfort over long shifts.

Product Features

The Yuchai engine delivers strong power with low fuel consumption, while the double-layer frame provides high load capacity and durability. The vehicle is fully equipped with multifunctional spraying capability, making it highly suitable for landscaping work. Load and tank capacity are balanced to allow efficient operation without overloading the chassis.

Application Scenarios

The Tri-Ring T3 4×2 Greening Spraying Truck is suited to road dust washing and suppression, green belt spraying, seedling and nursery watering, and general water supply — the core municipal landscaping and environmental hygiene tasks for which an 8 m³ water bowser is the standard tool.

• Vehicle Type: This is a Greening Spraying Truck (绿化喷洒车), commonly known as a water bowser or street sprinkler. Instead of a standard cargo box, it is fitted with an 8 cubic meter water tank and a specialized spraying system (front, side, and rear nozzles, plus a water cannon).
• Chassis & Payload: Built on a rugged 230 (6+5) double-layer frame with a 6-ton rear axle. This medium-duty chassis is required to support the heavy, shifting weight of an 8m³ water tank (roughly 8 tons of water alone) while maintaining stability.
• Powertrain: Powered by the Yuchai YCDV3663-180 (180HP) engine. The engine drives both the vehicle and the water pump (via a Power Take-Off / PTO). The "golden ratio" between the truck's chassis and the tank ensures it is not overloaded but carries enough water for efficient municipal landscaping tasks.

Product Features

• The Yuchai engine is powerful and fuel-efficient, with a strong double-layer frame for high load capacity.
• Fully equipped with multifunctional spraying features, highly suitable for landscaping.
• Optimal balance between load and tank capacity for efficient operation.

Application Scenarios

• Road dust washing, green belt spraying, seedling watering, water supply, etc.
