{{ tags.important.name }}Tri-Ring 4×2 EV Dischargeable Garbage Truck – 100kWh

Product Introduction

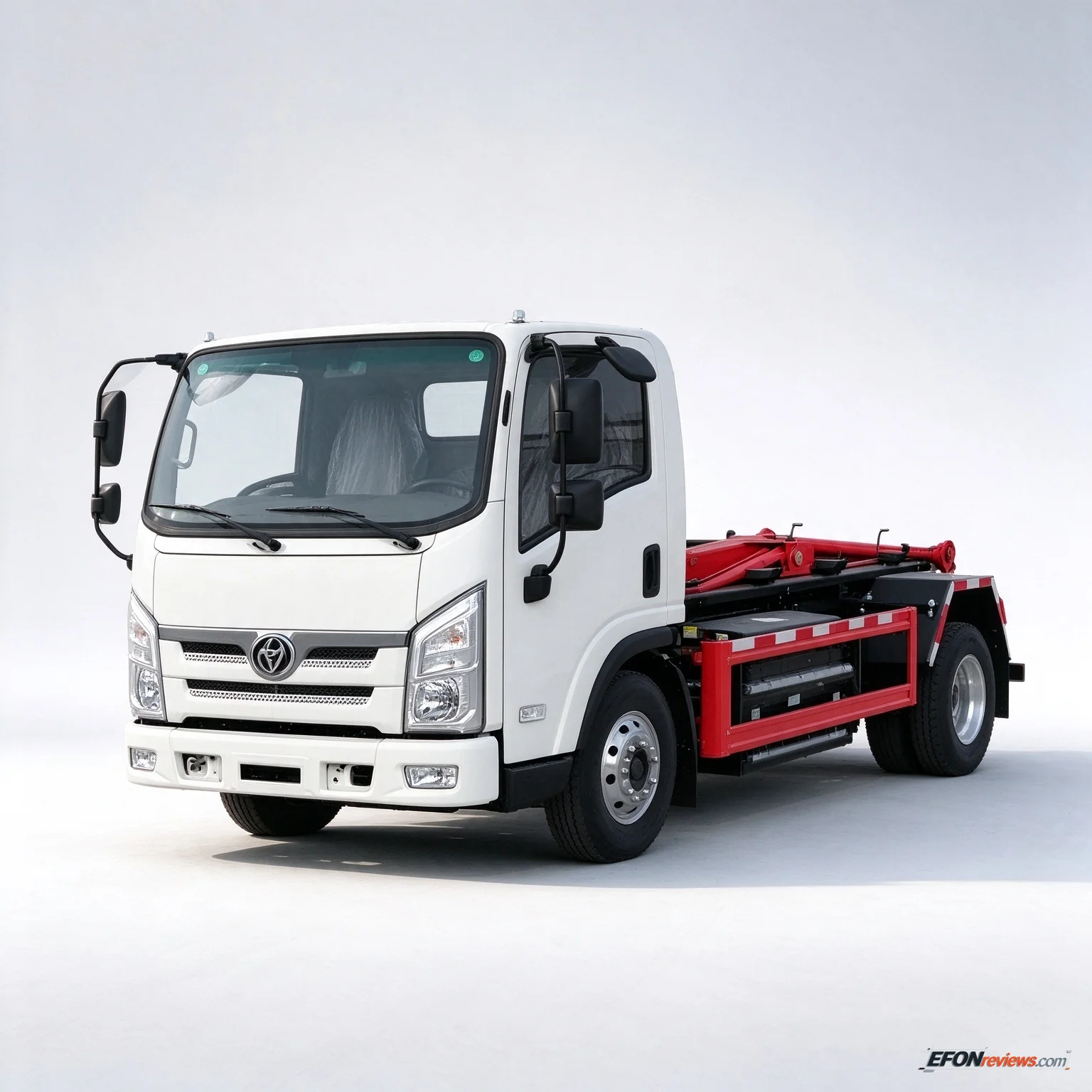

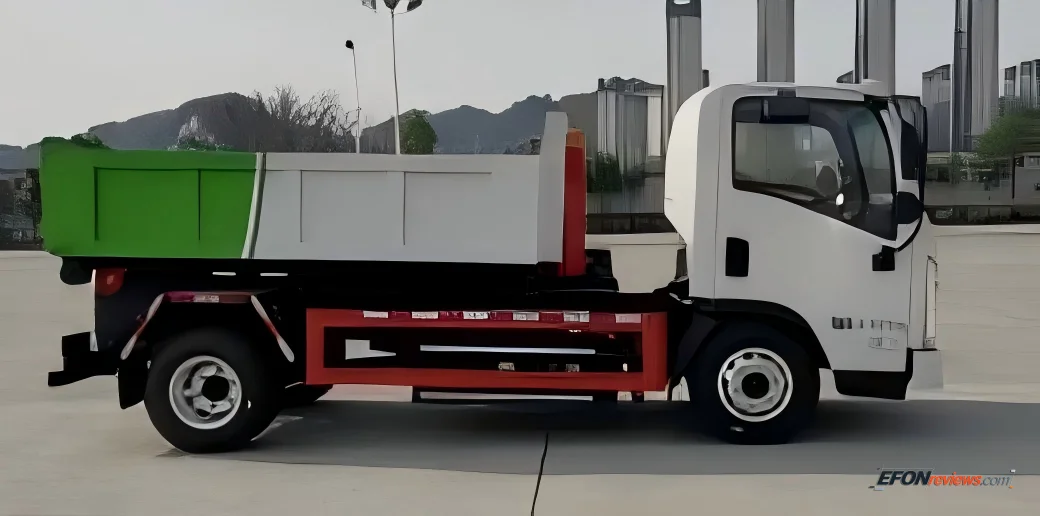

The 4×2 EV Dischargeable Garbage Truck is a highly efficient, zero-emission municipal sanitation vehicle engineered for modular waste collection. Also known as a hook-lift or roll-off garbage truck, its defining feature is its ability to transport detachable dumpsters (containers). The truck carries a container to a collection point, drops it off, and picks up a full one—allowing a single vehicle to service multiple scattered waste bins. This dramatically improves operational efficiency and reduces vehicle idle time, making it an indispensable asset for modern urban waste management.

Electric Powertrain and Urban Efficiency

At the heart of this vehicle is a reliable 100 kWh CATL battery paired with a 120 kW peak electric motor (60 kW rated). This powertrain delivers smooth, instant torque, perfectly suited for the stop-and-go nature of urban waste collection. The 100 km driving range is highly practical for a full day's worth of municipal collection routes within a city. The vehicle supports fast charging, allowing for quick turnaround between shifts. With zero tailpipe emissions and low noise, it is ideal for early morning or late-night operations in residential areas.

Chassis Architecture and Payload

Built on a compact 3,300 mm wheelbase, the truck features a 2.2T front axle and a lighter 4.2T rear axle with a 5.83 ratio, riding on durable 7.00R16LT 10PR tires. This setup is appropriate for a 4.5-ton curb weight light truck. The chassis is designed to withstand the structural stress of the hook-lift mechanism, which repeatedly lifts and drops heavy loaded containers.

(Note: The actual legal payload for this vehicle is approximately 7.5 tons, calculated based on the 12,000 kg GVW minus the 4,495 kg curb weight. The 15,000 kg listed in some specs may be a cumulative rating for multiple container transfers, not a single-trip legal payload.)

Container Dimensions and Versatility

The vehicle supports detachable containers with dimensions of 3,200 mm or 3,500 mm in length, 1,900 mm in width, and 1,050 mm in height. (Note: The actual overall vehicle length will be slightly longer than the container, depending on the hook-lift mechanism and chassis overhang.) The modular design allows for the use of multiple containers for different waste streams, such as household garbage, construction waste, or recyclables.

Cabin and Driver Comfort

The vehicle comes with a standard configuration that includes air conditioning, ABS (Anti-lock Braking System), and fast charging, ensuring a comfortable, safe, and productive working environment for the driver during long municipal shifts.

Global Export and EFON GROUP Partnership

As the authorized global export agent, EFON GROUP is dedicated to delivering premium commercial vehicles to international markets across Africa, Southeast Asia, Latin America, and the Middle East. We provide comprehensive end-to-end export solutions, including customized bodywork coordination, rigorous pre-shipment quality inspections, and reliable sea freight logistics. By choosing EFON GROUP, international buyers secure a trusted partner committed to competitive pricing, seamless global shipping, and dedicated after-sales support for their entire fleet.

• Vehicle Type (Dischargeable / Hook-lift): The term "Dischargeable" (可卸式) means this is a hook-lift or roll-off garbage truck. The truck itself does not store garbage; instead, it carries a detachable dumpster/container to a collection point, drops it, and picks up a full one. This is highly efficient for municipal sanitation.
• EV Powertrain: Powered by a 100 kWh CATL battery with a 120 kW peak motor and a 100 km range. This is perfectly suited for a day's worth of urban collection routes. It features fast charging.
• Chassis & Payload: It features a 2.2T front axle and a 4.2T rear axle, lighter than the previous compression model, which is appropriate for a 4.5-ton curb weight light truck. Note the weight anomaly mentioned above: The real legal payload is 7.5 tons, not 15 tons.
• Dimensions: The table lists the "Overall Dimension" as 3200/3500 × 1900 × 1050. This is actually the Cargo Box (Container) Dimension. The actual vehicle length will be slightly longer depending on the hook-lift mechanism.
